4 head commercial embroidery machine

A 4-head embroidery machine is well suited to manufacturers and OEM operations that need higher output, because it can embroider multiple items at the same time.

This article covers the main differences from single-head machines, how to choose a 4-head model, and several specific machines.

What Is a 4-Head Embroidery Machine?

A 4-head embroidery machine is a commercial model with four embroidery heads (the working units that stitch the embroidery). Because the four heads operate independently, the machine can embroider the same design on up to four items simultaneously. Its main advantage is high productivity, enabling you to complete larger quantities in less time.

In commercial lineups, options are not limited to 4-head machines; multi-head models such as 6-head and 8-head machines are also available for higher-volume production.

Differences from Single-Head Machines

The main difference between a 4-head machine and a single-head machine is the number of heads—and the productivity that comes with it. With only one head, a single-head machine can embroider just one item at a time, making it a good fit for small operations focused on small-batch production or custom orders.

By contrast, a 4-head machine can embroider multiple items at once, greatly increasing output speed. It is well suited to high-volume production environments such as apparel manufacturers and OEM operations, especially when consistent supply is required.

Key Points When Choosing a 4-Head Machine

When choosing a 4-head machine, checking the machine size is a good first step. Because it takes up more space than a single-head machine, models with a smaller footprint can be worth considering when installation space is limited.

Embroidery precision and the availability of correction features are also key points to consider. If you choose a model with high precision and correction features, it becomes easier to reduce defects and keep results consistent across multiple heads.

Benefits of Introducing a 4-Head Machine

The main advantage of a 4-head machine is the ability to significantly improve production efficiency. For example, embroidering the same design on 100 garments requires 100 runs on a single-head machine, but only 25 runs on a 4-head machine. This reduces working time, which can in turn lower production costs and shorten lead times. With higher throughput, it becomes easier to take on additional orders you previously could not handle, and it can also expand order opportunities.

4-Head Models

Tajima TMEZ-KC

Source: Tajima official website
https://www.tajima.com/product/tmez-kc/

The TMEZ-KC series multi-head cylinder embroidery machines incorporate advanced proprietary technologies from Tajima. This series is designed for logo and emblem embroidery on items such as sports uniforms and headwear, supporting small to medium production runs. With the integration of i-TM and DCP, the machines enable consistent quality and high-speed operation across a wide range of fabrics, even for those with limited embroidery experience.

Main specifications

• Maximum speed: 1,100 spm
• Number of heads: 2, 4, 6, or 8
• Number of needles: 9, 12, or 15
• Maximum embroidery field: Head interval 360 ＞450 mm x 360 mm
• Weight: Not specified
• Power consumption: 760w

Finished product examples

Source: Tajima official website
https://www.tajima.com/product/tmez-kc/

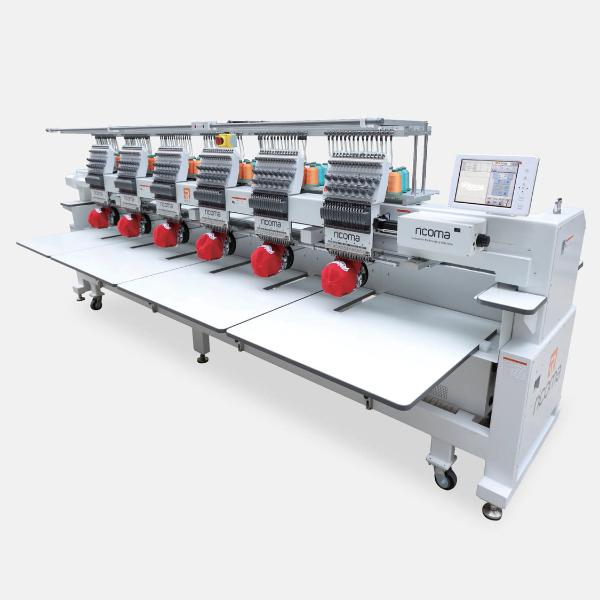

Ricoma CHT2 Series

Source: Ricoma Official Website
https://ricoma.com/products/cht2-series-multi-head-commercial-embroidery-machine

With configurations ranging from 4 to 12 heads, this commercial model is designed for industrial use. It is built to handle a wide range of products, from garments to small goods. It is also designed with usability in mind; key functions are easily accessed from a large touchscreen, making it one of the more user-friendly options among multi-head machines.

Main specifications

• Maximum speed: 1,000 spm
• Number of heads: 4, 6, 8, or 12
• Number of needles: 15
• Maximum embroidery field: 400 x 450 mm (expandable to 500 x 450 mm depending on the option selected)
• Weight: Not specified
• Power consumption: Not specified

Finished product examples

No finished product examples were available.

Butterfly B-1504B/T

Source: The Embroidery Warehouse
https://www.theembroiderywarehouse.com/xcart/butterfly-b-1504b-t-commercial-embroidery-machine.html

This model features a full-color touchscreen, allowing you to preview the finish and make adjustments to embroidery data directly on the panel. It also supports importing data via USB, which helps streamline the workflow. Another notable feature is that it comes with hat frames and gauges, making it a practical option for cap embroidery as well.

Main specifications

• Maximum speed: 1,200 spm
• Number of heads: 4
• Number of needles: 15
• Maximum embroidery field: 450 x 360 mm
• Weight: Not specified
• Power consumption: Not specified

Finished product examples

No finished product examples were available.

Summary by the Editorial Team

A 4-head commercial embroidery machine can embroider multiple items at the same time, making it a strong option for businesses that need high-volume production. This boosts productivity, which in turn can lead to lower costs and shorter lead times. If a model offers different head configurations, you can adjust operations flexibly to match your required output.

Please note that the best choice will vary depending on the products you handle and the level of precision you need.
